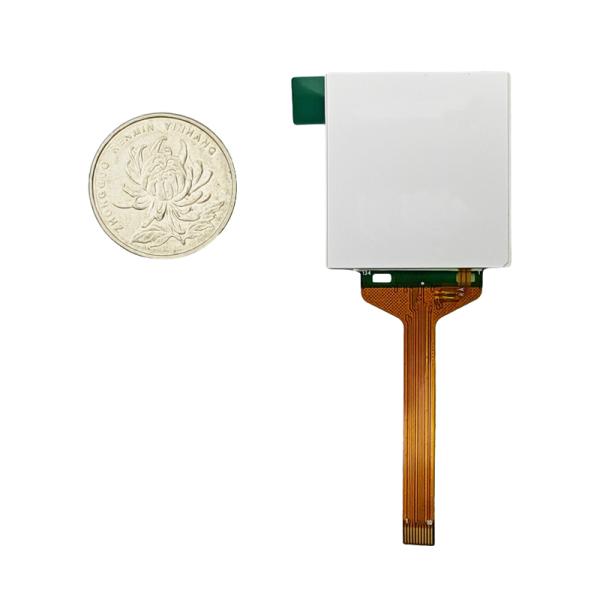

1.54 Inch IPS 240x240 Square TFT LCD Module Wide Temp 350nits Embedded SPI Display Industrial PCAP Touch display
Engineered for strict industrial standards, this Square TFT LCD Module delivers a compact, high-performance visual solution for industrial instrumentation and embedded device manufacturing. As a robust PCAP touch display, it integrates the GC9307 driver and CST816D touch IC for reliable operation in complex professional systems. Designed as an Embedded SPI Display, this module prioritizes integration efficiency for mass production—with full customization support tailored to B2B project requirements.
Key Advantages of Our Product:
- Superior Visual Performance
This 1.54 inch IPS PCAP touch display features 240x240 resolution, a normally black IPS panel, 350 nits brightness, and full "ALL O'CLOCK" viewing angles—ensuring clear, consistent visuals for bulk equipment deployments.
- Industrial-Grade Reliability
The PCAP touch display supports a wide temperature range (-20°C to +70°C operating; -30°C to +80°C storage), maintaining stability in harsh outdoor/industrial control environments—ideal for large-scale system integration.
- Efficient Integration & Customization
As an Embedded SPI Display, its 10-pin 4-wire SPI interface reduces GPIO usage, simplifying circuit design for system integrators. We offer full customization (touch configurations, cables, cover glass, HDMI boards, etc.) to align with your project’s unique specs.
OEM & ODM Customization Capabilities
We focus on B2B partnerships and offer deep customization services to match your project requirements. Unlike standard off-the-shelf components, our Square TFT LCD Module can be tailored to your mechanical and electrical constraints:
- Touch Panel Customization:
Options for Projected Capacitive Touch Screen (PCAP) with custom cover glass (AG/AR/AF coatings) and strength enhancements.
We accept customization for FPC shape, length, and interface definition.
We provide custom development for HDMI driver boards and other bridging solutions.
Touchscreen Display Application Scenarios:
Suitable for industrial control systems, helping factory automation and machinery create efficient, easy-to-use control panels, improving operational efficiency and user experience.
Suitable for various small consumer electronic devices, such as smart wearables and small smart home devices, providing users with convenient touch control and clear displays.
In embedded system applications, the excellent compatibility and reliable performance provide high-quality displays and interactive interfaces.
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Model Number | ZH015PISS001-01A |
| Brand Name | OEM/Customized |
| Screen Size | 1.54 inch |
| Resolution | 240x240 |
| Display mode | IPS,Normally Black |
| Brightness | 350cd/m² (Typ.) |
| Viewing Angle | ALL O'CLOCK |
| Active Area | 27.72(W)x27.72(H) mm |
| Outline Dimension | 37.95(W)x44.85(H)x2.98(T) mm |
| Lifetime | 30000Hours (Min.) |
| Drive IC | GC9307 |
| Interface | SPI , 10pins |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | optional Projected Capacitive Touch Screen |
| CTP View Area | 28.32(W)x28.32(H) mm |
| Touch IC | CST816D |
| Transparency / Surface Hardness | ≥83% / 6H |
| Touch / Interface | IIC 6pins , 5 points |
Product Drawing
Why Choose ZhanHui PCAP Touch Display?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1.What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2.Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5.Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
